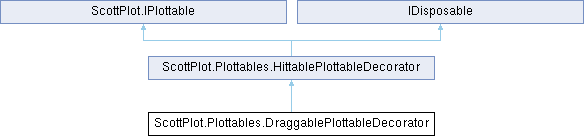

Inheritance diagram for ScottPlot.Plottables.DraggablePlottableDecorator:

Public Member Functions
	DraggablePlottableDecorator (IPlottable plottable)

void	StartDrag (Coordinates start)

void	DragTo (Coordinates to)

Public Member Functions inherited from ScottPlot.Plottables.HittablePlottableDecorator
AxisLimits	GetAxisLimits ()
	Return the 2D area (in coordinate space) occupied by the data contained in this plottable.

	HittablePlottableDecorator (IPlottable plottable)

bool	IsHit (Pixel pixel, float radius)
	Returns true if the plottable is within radius pixels of the given pixel

virtual void	Render (RenderPack rp)
	Draw the data from this plottable into the data area defined in the Axes. By default the surface is already clipped to the data area, but this can be cleared inside the plottable.

void	Dispose ()

Additional Inherited Members
Properties inherited from ScottPlot.Plottables.HittablePlottableDecorator
IPlottable	Source `[get]`

bool	IsVisible `[get, set]`
	Toggles whether this plottable is shown and contributes to the automatic axis limit detection. The calling method will check this variable (it does not need to be checked inside the Render method).

IAxes	Axes `[get, set]`
	This object performs coordinate/pixel translation at render time based on the latest data area. It stores the axes to use for this plottable and also the data area (in pixels) updated just before each render. If this object is null it will be constructed using the default X and Y axes at render time.

IEnumerable< LegendItem >	LegendItems `[get]`
	Items which will appear in the legend.

Properties inherited from ScottPlot.IPlottable

Constructor & Destructor Documentation

◆ DraggablePlottableDecorator()

ScottPlot.Plottables.DraggablePlottableDecorator.DraggablePlottableDecorator ( IPlottable plottable )

inline

void ScottPlot.Plottables.DraggablePlottableDecorator.DragTo ( Coordinates to )

inline

void ScottPlot.Plottables.DraggablePlottableDecorator.StartDrag ( Coordinates start )

inline

The documentation for this class was generated from the following file:

ScottPlot/src/ScottPlot5/ScottPlot5/Plottables/DraggablePlottableDecorator.cs
