ScottPlot.Plottables.PieBase Class Reference

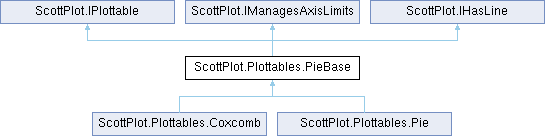

Inheritance diagram for ScottPlot.Plottables.PieBase:

Public Member Functions
virtual void	UpdateAxisLimits (Plot plot)
AxisLimits	GetAxisLimits ()
	Return the 2D area (in coordinate space) occupied by the data contained in this plottable.
void	Render (RenderPack rp)
	Draw the data from this plottable into the data area defined in the Axes. By default the surface is already clipped to the data area, but this can be cleared inside the plottable.

Properties
IAxes	Axes = new Axes() [get, set]
	This object performs coordinate/pixel translation at render time based on the latest data area. It stores the axes to use for this plottable and also the data area (in pixels) updated just before each render. If this object is null it will be constructed using the default X and Y axes at render time.
bool	IsVisible = true [get, set]
	Toggles whether this plottable is shown and contributes to the automatic axis limit detection. The calling method will check this variable (it does not need to be checked inside the Render method).
Angle	Rotation = Angle.FromDegrees(-90) [get, set]
IEnumerable< LegendItem >	LegendItems [get]
	Items which will appear in the legend.
Color	LineColor [get, set]
LinePattern	LinePattern [get, set]
LineStyle	LineStyle = new() { Width = 1 } [get, set]
float	LineWidth [get, set]
double	Padding = 0.2 [get, set]
double	SliceLabelDistance = 1.2 [get, set]
IList< PieSlice >	Slices = [] [get, set]
bool	ManageAxisLimits = true [get, set]
	Enable this to modify the axis limits at render time to achieve "square axes" where the units/px values are equal for horizontal and vertical axes, allowing circles to always appear as circles instead of ellipses.
Properties inherited from ScottPlot.IPlottable
Properties inherited from ScottPlot.IManagesAxisLimits
Properties inherited from ScottPlot.IHasLine

Member Function Documentation

GetAxisLimits()

AxisLimits ScottPlot.Plottables.PieBase.GetAxisLimits ( )

abstract

Return the 2D area (in coordinate space) occupied by the data contained in this plottable.

Implements ScottPlot.IPlottable.

Render()

void ScottPlot.Plottables.PieBase.Render ( RenderPack  rp )

abstract

Draw the data from this plottable into the data area defined in the Axes. By default the surface is already clipped to the data area, but this can be cleared inside the plottable.

Implements ScottPlot.IPlottable.

UpdateAxisLimits()

virtual void ScottPlot.Plottables.PieBase.UpdateAxisLimits ( Plot  plot )

inlinevirtual

Implements ScottPlot.IManagesAxisLimits.

Property Documentation

Axes

IAxes ScottPlot.Plottables.PieBase.Axes = new Axes()

getset

This object performs coordinate/pixel translation at render time based on the latest data area. It stores the axes to use for this plottable and also the data area (in pixels) updated just before each render. If this object is null it will be constructed using the default X and Y axes at render time.

Implements ScottPlot.IPlottable.

IsVisible

bool ScottPlot.Plottables.PieBase.IsVisible = true

getset

Toggles whether this plottable is shown and contributes to the automatic axis limit detection. The calling method will check this variable (it does not need to be checked inside the Render method).

Implements ScottPlot.IPlottable.

LegendItems

IEnumerable<LegendItem> ScottPlot.Plottables.PieBase.LegendItems

get

Items which will appear in the legend.

Implements ScottPlot.IPlottable.

LineColor

Color ScottPlot.Plottables.PieBase.LineColor

getset

Implements ScottPlot.IHasLine.

LinePattern

LinePattern ScottPlot.Plottables.PieBase.LinePattern

getset

Implements ScottPlot.IHasLine.

LineStyle

LineStyle ScottPlot.Plottables.PieBase.LineStyle = new() { Width = 1 }

getset

Implements ScottPlot.IHasLine.

LineWidth

float ScottPlot.Plottables.PieBase.LineWidth

getset

Implements ScottPlot.IHasLine.

ManageAxisLimits

bool ScottPlot.Plottables.PieBase.ManageAxisLimits = true

getset

Enable this to modify the axis limits at render time to achieve "square axes" where the units/px values are equal for horizontal and vertical axes, allowing circles to always appear as circles instead of ellipses.

Implements ScottPlot.IManagesAxisLimits.

Padding

double ScottPlot.Plottables.PieBase.Padding = 0.2

getset

Rotation

Angle ScottPlot.Plottables.PieBase.Rotation = Angle.FromDegrees(-90)

getset

SliceLabelDistance

double ScottPlot.Plottables.PieBase.SliceLabelDistance = 1.2

getset

Slices

IList<PieSlice> ScottPlot.Plottables.PieBase.Slices = []

getset

---

The documentation for this class was generated from the following file:

• ScottPlot/src/ScottPlot5/ScottPlot5/Plottables/PieBase.cs
