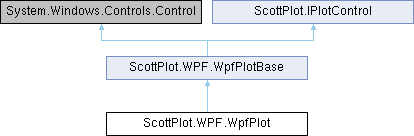

Inheritance diagram for ScottPlot.WPF.WpfPlot:

Public Member Functions
override void	OnApplyTemplate ()

override void	Refresh ()
	Render the plot and update the image.

Public Member Functions inherited from ScottPlot.WPF.WpfPlotBase
void	Refresh ()
	Render the plot and update the image.

	WpfPlotBase ()

void	Reset ()
	Disposes the current Plot and creates a new one for the control.

void	Reset (Plot newPlot)
	Loads the given Plot into the control.

void	ShowContextMenu (Pixel position)
	Launch the default pop-up menu (typically in response to a right-click) at the given position in the control.

float	DetectDisplayScale ()
	Determine the DPI scaling ratio of the present display. A value of 1.0 means no scaling, and 1.5 means 150% scaling. This operation may be costly so do not call it frequently.

Pixel	GetPlotPixelPosition (MouseEventArgs e)
	Returns the position of the mouse pointer relative to Plot drawing surface.

Pixel	GetCurrentPlotPixelPosition ()
	Returns the current position of the mouse pointer relative to Plot drawing surface.

Properties
override FrameworkElement	PlotFrameworkElement `[get]`

override GRContext	GRContext `[get]`
	Context for hardware-accelerated graphics (or null if not available)

Properties inherited from ScottPlot.WPF.WpfPlotBase
GRContext	GRContext `[get]`
	Context for hardware-accelerated graphics (or null if not available)

Plot	Plot `[get, set]`
	The primary Plot displayed by this interactive control.

IMultiplot	Multiplot `[get, set]`
	The multiplot managed by this interactive control.

float	DisplayScale `[get, set]`
	The value of the present display scaling. Mouse positions are multiplied by this value for pixel/coordinate conversions.

IPlotMenu?	Menu `[get, set]`
	Platform-specific logic for managing the context menu.

Interactivity.UserInputProcessor	UserInputProcessor `[get]`
	This object takes in UI events and contains logic for how to respond to them. This is a newer alternative to the older Interaction system.

FrameworkElement	PlotFrameworkElement `[get]`

Properties inherited from ScottPlot.IPlotControl

Additional Inherited Members
Protected Member Functions inherited from ScottPlot.WPF.WpfPlotBase
override void	OnKeyDown (KeyEventArgs e)

override void	OnKeyUp (KeyEventArgs e)

Member Function Documentation

◆ OnApplyTemplate()

override void ScottPlot.WPF.WpfPlot.OnApplyTemplate ( )

inline

override void ScottPlot.WPF.WpfPlot.Refresh ( )

inline

Render the plot and update the image.

override GRContext ScottPlot.WPF.WpfPlot.GRContext

get

Context for hardware-accelerated graphics (or null if not available)

override FrameworkElement ScottPlot.WPF.WpfPlot.PlotFrameworkElement

getprotected

The documentation for this class was generated from the following file:
