ScottPlot.WinForms.FormsPlotBase Class Reference

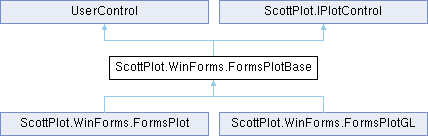

Inheritance diagram for ScottPlot.WinForms.FormsPlotBase:

Public Member Functions
	FormsPlotBase ()
void	Reset ()
	Disposes the current Plot and creates a new one for the control.
void	Reset (Plot plot)
	Loads the given Plot into the control.
void	Reset (Plot plot, bool disposeOldPlot)
void	ShowContextMenu (Pixel position)
	Launch the default pop-up menu (typically in response to a right-click) at the given position in the control.
float	DetectDisplayScale ()
	Determine the DPI scaling ratio of the present display. A value of 1.0 means no scaling, and 1.5 means 150% scaling. This operation may be costly so do not call it frequently.
Public Member Functions inherited from ScottPlot.IPlotControl
void	Refresh ()
	Render the plot and update the image.

Properties
GRContext	GRContext [get]
	Context for hardware-accelerated graphics (or null if not available)
Plot	Plot [get, set]
	The primary Plot displayed by this interactive control.
IMultiplot	Multiplot [get, set]
	The multiplot managed by this interactive control.
IPlotMenu?	Menu [get, set]
	Platform-specific logic for managing the context menu.
UserInputProcessor	UserInputProcessor [get]
	This object takes in UI events and contains logic for how to respond to them. This is a newer alternative to the older Interaction system.
float	DisplayScale [get, set]
	The value of the present display scaling. Mouse positions are multiplied by this value for pixel/coordinate conversions.
bool	IsDesignerAlternative [get]
	A design time alternative view is displayed for instances where the plot control is loaded inside Visual Studio and the SkiaSharp DLL cannot be properly loaded.
override System.Drawing.Color	BackColor [get, set]
Properties inherited from ScottPlot.IPlotControl

Constructor & Destructor Documentation

FormsPlotBase()

ScottPlot.WinForms.FormsPlotBase.FormsPlotBase ( )

inline

Member Function Documentation

DetectDisplayScale()

float ScottPlot.WinForms.FormsPlotBase.DetectDisplayScale ( )

inline

Determine the DPI scaling ratio of the present display. A value of 1.0 means no scaling, and 1.5 means 150% scaling. This operation may be costly so do not call it frequently.

Implements ScottPlot.IPlotControl.

Reset() [1/3]

void ScottPlot.WinForms.FormsPlotBase.Reset ( )

inline

Disposes the current Plot and creates a new one for the control.

Implements ScottPlot.IPlotControl.

Reset() [2/3]

void ScottPlot.WinForms.FormsPlotBase.Reset ( Plot  plot )

inline

Loads the given Plot into the control.

Implements ScottPlot.IPlotControl.

Reset() [3/3]

void ScottPlot.WinForms.FormsPlotBase.Reset ( Plot  plot, bool  disposeOldPlot  )

inline

ShowContextMenu()

void ScottPlot.WinForms.FormsPlotBase.ShowContextMenu ( Pixel  position )

inline

Launch the default pop-up menu (typically in response to a right-click) at the given position in the control.

Implements ScottPlot.IPlotControl.

Property Documentation

BackColor

override System.Drawing.Color ScottPlot.WinForms.FormsPlotBase.BackColor

getset

DisplayScale

float ScottPlot.WinForms.FormsPlotBase.DisplayScale

getset

The value of the present display scaling. Mouse positions are multiplied by this value for pixel/coordinate conversions.

Implements ScottPlot.IPlotControl.

GRContext

GRContext ScottPlot.WinForms.FormsPlotBase.GRContext

getabstract

Context for hardware-accelerated graphics (or null if not available)

Implements ScottPlot.IPlotControl.

IsDesignerAlternative

bool ScottPlot.WinForms.FormsPlotBase.IsDesignerAlternative

getprotected

A design time alternative view is displayed for instances where the plot control is loaded inside Visual Studio and the SkiaSharp DLL cannot be properly loaded.

Menu

IPlotMenu? ScottPlot.WinForms.FormsPlotBase.Menu

getset

Platform-specific logic for managing the context menu.

Implements ScottPlot.IPlotControl.

Multiplot

IMultiplot ScottPlot.WinForms.FormsPlotBase.Multiplot

getset

The multiplot managed by this interactive control.

Implements ScottPlot.IPlotControl.

Plot

Plot ScottPlot.WinForms.FormsPlotBase.Plot

getset

The primary Plot displayed by this interactive control.

Implements ScottPlot.IPlotControl.

UserInputProcessor

UserInputProcessor ScottPlot.WinForms.FormsPlotBase.UserInputProcessor

get

This object takes in UI events and contains logic for how to respond to them. This is a newer alternative to the older Interaction system.

Implements ScottPlot.IPlotControl.

---

The documentation for this class was generated from the following file:

• ScottPlot/src/ScottPlot5/ScottPlot5 Controls/ScottPlot.WinForms/FormsPlotBase.cs
