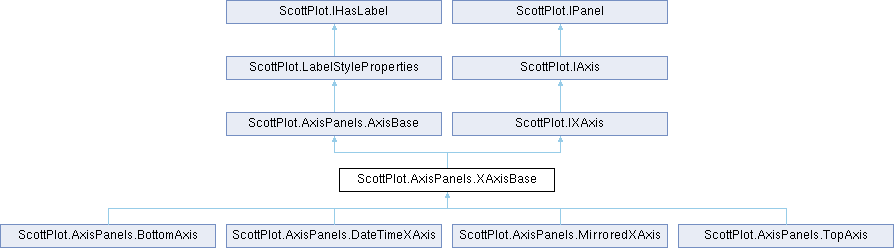

Inheritance diagram for ScottPlot.AxisPanels.XAxisBase:

Public Member Functions
	XAxisBase ()

virtual float	Measure ()
	Return the size (in pixels) of the panel in the dimension perpendicular to the edge it lays on.

float	GetPixel (double position, PixelRect dataArea)
	Get the pixel position of a coordinate given the location and size of the data area.

double	GetCoordinate (float pixel, PixelRect dataArea)
	Get the coordinate of a pixel position given the location and size of the data area.

PixelRect	GetPanelRect (PixelRect dataRect, float size, float offset)
	Return the rectangle for this panel.

virtual void	Render (RenderPack rp, float size, float offset)
	Draw this panel on a canvas.

double	GetPixelDistance (double distance, PixelRect dataArea)
	Given a distance in coordinate space, converts to pixel space.

double	GetCoordinateDistance (float distance, PixelRect dataArea)
	Given a distance in pixel space, converts to coordinate space.

void	RegenerateTicks (PixelLength size)
	Use the TickLabelStyle to generate ticks with ideal spacing.

Public Member Functions inherited from ScottPlot.AxisPanels.AxisBase
override string	ToString ()

void	Color (Color color)
	Apply a single color to all axis components: label, tick labels, tick marks, and frame.

void	SetTicks (double[] xs, string[] labels)
	Replace the TickGenerator with a NumericManual pre-loaded with the given ticks.

Public Member Functions inherited from ScottPlot.IAxis
void	SetTicks (double[] xs, string[] labels)
	Replace the TickGenerator with a NumericManual pre-loaded with the given ticks.

Properties
double	Width `[get]`

Properties inherited from ScottPlot.AxisPanels.AxisBase
bool	IsVisible = true `[get, set]`

Edge	Edge `[get]`

virtual CoordinateRangeMutable	Range = CoordinateRangeMutable.NotSet `[get]`

float	MinimumSize = 0 `[get, set]`

float	MaximumSize = float.MaxValue `[get, set]`

float	SizeWhenNoData = 15 `[get, set]`

PixelPadding	EmptyLabelPadding = new(10, 5) `[get, set]`

PixelPadding	PaddingBetweenTickAndAxisLabels = new(5, 3) `[get, set]`

PixelPadding	PaddingOutsideAxisLabels = new(2, 2) `[get, set]`

bool	ClipLabel = false `[get, set]`
	Controls whether labels should be clipped to the boundaries of the data area.

double	Min `[get, set]`

double	Max `[get, set]`

virtual ITickGenerator	TickGenerator = null! `[get, set]`

LabelStyle	Label `[get]`

override LabelStyle	LabelStyle `[get, set]`

bool	ShowDebugInformation = false `[get, set]`

LineStyle	FrameLineStyle `[get]`

TickMarkStyle	MajorTickStyle `[get, set]`

TickMarkStyle	MinorTickStyle `[get, set]`

LabelStyle	TickLabelStyle `[get, set]`

Properties inherited from ScottPlot.LabelStyleProperties
LabelStyle	LabelStyle `[get, set]`

float	LabelOffsetX `[get, set]`

float	LabelOffsetY `[get, set]`

float	LabelRotation `[get, set]`

float	LabelPadding `[set]`

PixelPadding	LabelPixelPadding `[get, set]`

PixelRect	LabelLastRenderPixelRect `[get]`

string	LabelText `[get, set]`

Alignment	LabelAlignment `[get, set]`

string	LabelFontName `[get, set]`

float	LabelFontSize `[get, set]`

float?	LabelLineSpacing `[get, set]`

bool	LabelItalic `[get, set]`

bool	LabelBold `[get, set]`

Color	LabelFontColor `[get, set]`

Color	LabelBackgroundColor `[get, set]`

float	LabelBorderRadius `[get, set]`

float	LabelBorderRadiusX `[get, set]`

float	LabelBorderRadiusY `[get, set]`

float	LabelBorderWidth `[get, set]`

Color	LabelBorderColor `[get, set]`

Color	LabelShadowColor `[get, set]`

PixelOffset	LabelShadowOffset `[get, set]`

Properties inherited from ScottPlot.IHasLabel
Properties inherited from ScottPlot.IXAxis
Properties inherited from ScottPlot.IAxis
CoordinateRangeMutable	Range `[get]`
	Min/Max range currently displayed by this axis.

double	Min `[get, set]`

double	Max `[get, set]`

ITickGenerator	TickGenerator `[get, set]`
	Logic for determining tick positions and formatting tick labels.

LabelStyle	Label `[get]`
	The label is the text displayed distal to the ticks.

TickMarkStyle	MajorTickStyle `[get, set]`

TickMarkStyle	MinorTickStyle `[get, set]`

LabelStyle	TickLabelStyle `[get, set]`

LineStyle	FrameLineStyle `[get]`

Properties inherited from ScottPlot.IPanel
bool	IsVisible `[get, set]`
	If false, the panel will not be displayed or report any size.

float	MinimumSize `[get, set]`
	Disallow the panel to be smaller than this.

float	MaximumSize `[get, set]`
	Disallow the panel to be larger than this.

Edge	Edge `[get]`
	Indicates which edge of the data rectangle this panel lays on.

bool	ShowDebugInformation `[get, set]`
	Enable this to display extra information on the axis to facilitate development.

Additional Inherited Members
Static Public Member Functions inherited from ScottPlot.AxisPanels.AxisBase
static void	DrawFrame (RenderPack rp, PixelRect panelRect, Edge edge, LineStyle lineStyle)
	Draw a line along the edge of an axis on the side of the data area.

static void	DrawTicks (RenderPack rp, LabelStyle label, PixelRect panelRect, IEnumerable< Tick > ticks, IAxis axis, TickMarkStyle majorStyle, TickMarkStyle minorStyle)

Constructor & Destructor Documentation

◆ XAxisBase()

ScottPlot.AxisPanels.XAxisBase.XAxisBase ( )

inline

Member Function Documentation

◆ GetCoordinate()

double ScottPlot.AxisPanels.XAxisBase.GetCoordinate	(	float	pixel,
		PixelRect	dataArea
	)

inline

Get the coordinate of a pixel position given the location and size of the data area.

Implements ScottPlot.IAxis.

◆ GetCoordinateDistance()

double ScottPlot.AxisPanels.XAxisBase.GetCoordinateDistance	(	float	pixelDistance,
		PixelRect	dataArea
	)

inline

Given a distance in pixel space, converts to coordinate space.

Parameters

pixelDistance	A distance in pixel units
dataArea	The rectangle onto which the coordinates are mapped

Returns: The same distance in coordinate units

Implements ScottPlot.IAxis.

◆ GetPanelRect()

PixelRect ScottPlot.AxisPanels.XAxisBase.GetPanelRect	(	PixelRect	dataRect,
		float	size,
		float	offset
	)

inline

Return the rectangle for this panel.

Implements ScottPlot.IPanel.

◆ GetPixel()

float ScottPlot.AxisPanels.XAxisBase.GetPixel	(	double	position,
		PixelRect	dataArea
	)

inline

Get the pixel position of a coordinate given the location and size of the data area.

Implements ScottPlot.IAxis.

◆ GetPixelDistance()

double ScottPlot.AxisPanels.XAxisBase.GetPixelDistance	(	double	coordinateDistance,
		PixelRect	dataArea
	)

inline

Given a distance in coordinate space, converts to pixel space.

Parameters

coordinateDistance	A distance in coordinate units
dataArea	The rectangle onto which the coordinates are mapped

Returns: The same distance in pixel units

Implements ScottPlot.IAxis.

◆ Measure()

virtual float ScottPlot.AxisPanels.XAxisBase.Measure ( )

inlinevirtual

Return the size (in pixels) of the panel in the dimension perpendicular to the edge it lays on.

Returns

Implements ScottPlot.IPanel.

◆ RegenerateTicks()

void ScottPlot.AxisPanels.XAxisBase.RegenerateTicks ( PixelLength size )

inline

Use the TickLabelStyle to generate ticks with ideal spacing.

Implements ScottPlot.IAxis.

◆ Render()

virtual void ScottPlot.AxisPanels.XAxisBase.Render	(	RenderPack	rp,
		float	size,
		float	offset
	)

inlinevirtual

Draw this panel on a canvas.

Parameters

surface	contains the canvas to draw on
dataRect	dimensions of the data area (pixel units)
size	size of this panel (pixel units)
offset	distance from the edge of this panel to the edge of the data area

Implements ScottPlot.IPanel.

Property Documentation

◆ Width

double ScottPlot.AxisPanels.XAxisBase.Width

get

Implements ScottPlot.IXAxis.

The documentation for this class was generated from the following file:

ScottPlot/src/ScottPlot5/ScottPlot5/AxisPanels/XAxisBase.cs
