ScottPlot.IAxis Interface Reference

This interface describes a 1D axis (horizontal or vertical). Responsibilities include: min/max management, unit/pixel conversion, tick generation (and rendering), axis label rendering, and self-measurement for layout purposes. More...

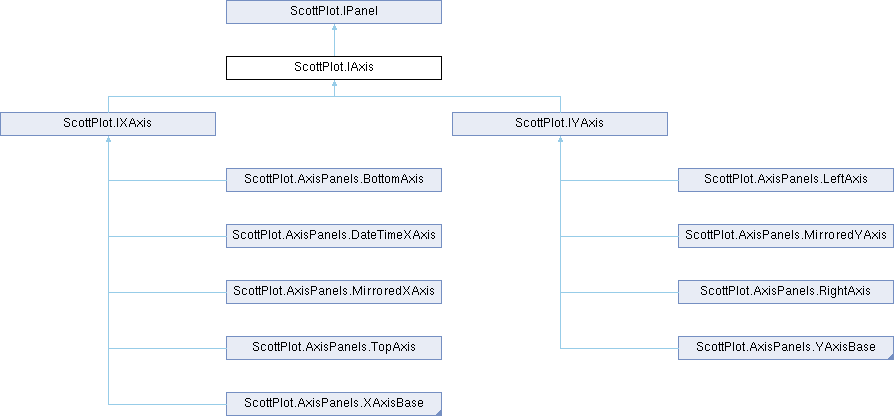

Inheritance diagram for ScottPlot.IAxis:

Public Member Functions
float	GetPixel (double position, PixelRect dataArea)
	Get the pixel position of a coordinate given the location and size of the data area.
double	GetCoordinate (float pixel, PixelRect dataArea)
	Get the coordinate of a pixel position given the location and size of the data area.
double	GetPixelDistance (double coordinateDistance, PixelRect dataArea)
	Given a distance in coordinate space, converts to pixel space.
double	GetCoordinateDistance (float pixelDistance, PixelRect dataArea)
	Given a distance in pixel space, converts to coordinate space.
void	SetTicks (double[] xs, string[] labels)
	Replace the TickGenerator with a NumericManual pre-loaded with the given ticks.
void	RegenerateTicks (PixelLength size)
	Use the TickLabelStyle to generate ticks with ideal spacing.
Public Member Functions inherited from ScottPlot.IPanel
float	Measure ()
	Return the size (in pixels) of the panel in the dimension perpendicular to the edge it lays on.
void	Render (RenderPack rp, float size, float offset)
	Draw this panel on a canvas.
PixelRect	GetPanelRect (PixelRect dataRect, float size, float offset)
	Return the rectangle for this panel.

Properties
CoordinateRangeMutable	Range [get]
	Min/Max range currently displayed by this axis.
double	Min [get, set]
double	Max [get, set]
ITickGenerator	TickGenerator [get, set]
	Logic for determining tick positions and formatting tick labels.
LabelStyle	Label [get]
	The label is the text displayed distal to the ticks.
TickMarkStyle	MajorTickStyle [get, set]
TickMarkStyle	MinorTickStyle [get, set]
LabelStyle	TickLabelStyle [get, set]
LineStyle	FrameLineStyle [get]
Properties inherited from ScottPlot.IPanel
bool	IsVisible [get, set]
	If false, the panel will not be displayed or report any size.
float	MinimumSize [get, set]
	Disallow the panel to be smaller than this.
float	MaximumSize [get, set]
	Disallow the panel to be larger than this.
Edge	Edge [get]
	Indicates which edge of the data rectangle this panel lays on.
bool	ShowDebugInformation [get, set]
	Enable this to display extra information on the axis to facilitate development.

Detailed Description

This interface describes a 1D axis (horizontal or vertical). Responsibilities include: min/max management, unit/pixel conversion, tick generation (and rendering), axis label rendering, and self-measurement for layout purposes.

Member Function Documentation

GetCoordinate()

double ScottPlot.IAxis.GetCoordinate	(	float	pixel,
		PixelRect	dataArea
	)

Get the coordinate of a pixel position given the location and size of the data area.

Implemented in ScottPlot.AxisPanels.XAxisBase, and ScottPlot.AxisPanels.YAxisBase.

GetCoordinateDistance()

double ScottPlot.IAxis.GetCoordinateDistance	(	float	pixelDistance,
		PixelRect	dataArea
	)

Given a distance in pixel space, converts to coordinate space.

Parameters

pixelDistance	A distance in pixel units
dataArea	The rectangle onto which the coordinates are mapped

Returns

The same distance in coordinate units

Implemented in ScottPlot.AxisPanels.XAxisBase, and ScottPlot.AxisPanels.YAxisBase.

GetPixel()

float ScottPlot.IAxis.GetPixel	(	double	position,
		PixelRect	dataArea
	)

Get the pixel position of a coordinate given the location and size of the data area.

Implemented in ScottPlot.AxisPanels.XAxisBase, and ScottPlot.AxisPanels.YAxisBase.

GetPixelDistance()

double ScottPlot.IAxis.GetPixelDistance	(	double	coordinateDistance,
		PixelRect	dataArea
	)

Given a distance in coordinate space, converts to pixel space.

Parameters

coordinateDistance	A distance in coordinate units
dataArea	The rectangle onto which the coordinates are mapped

Returns

The same distance in pixel units

Implemented in ScottPlot.AxisPanels.XAxisBase, and ScottPlot.AxisPanels.YAxisBase.

RegenerateTicks()

void ScottPlot.IAxis.RegenerateTicks

(

PixelLength

size

)

Use the TickLabelStyle to generate ticks with ideal spacing.

Implemented in ScottPlot.AxisPanels.XAxisBase, and ScottPlot.AxisPanels.YAxisBase.

SetTicks()

void ScottPlot.IAxis.SetTicks	(	double[]	xs,
		string[]	labels
	)

Replace the TickGenerator with a NumericManual pre-loaded with the given ticks.

Property Documentation

FrameLineStyle

LineStyle ScottPlot.IAxis.FrameLineStyle

get

Label

LabelStyle ScottPlot.IAxis.Label

get

The label is the text displayed distal to the ticks.

MajorTickStyle

TickMarkStyle ScottPlot.IAxis.MajorTickStyle

getset

Max

double ScottPlot.IAxis.Max

getset

Min

double ScottPlot.IAxis.Min

getset

MinorTickStyle

TickMarkStyle ScottPlot.IAxis.MinorTickStyle

getset

Range

CoordinateRangeMutable ScottPlot.IAxis.Range

get

Min/Max range currently displayed by this axis.

Implemented in ScottPlot.AxisPanels.MirroredXAxis, and ScottPlot.AxisPanels.MirroredYAxis.

TickGenerator

ITickGenerator ScottPlot.IAxis.TickGenerator

getset

Logic for determining tick positions and formatting tick labels.

Implemented in ScottPlot.AxisPanels.DateTimeXAxis.

TickLabelStyle

LabelStyle ScottPlot.IAxis.TickLabelStyle

getset

---

The documentation for this interface was generated from the following file:

• ScottPlot/src/ScottPlot5/ScottPlot5/Interfaces/IAxis.cs
