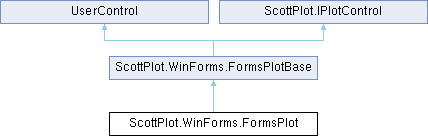

Inheritance diagram for ScottPlot.WinForms.FormsPlot:

Public Member Functions
	FormsPlot ()

override void	Refresh ()
	Render the plot and update the image.

Public Member Functions inherited from ScottPlot.WinForms.FormsPlotBase
	FormsPlotBase ()

void	Reset ()
	Disposes the current Plot and creates a new one for the control.

void	Reset (Plot plot)
	Loads the given Plot into the control.

void	Reset (Plot plot, bool disposeOldPlot)

void	ShowContextMenu (Pixel position)
	Launch the default pop-up menu (typically in response to a right-click) at the given position in the control.

float	DetectDisplayScale ()
	Determine the DPI scaling ratio of the present display. A value of 1.0 means no scaling, and 1.5 means 150% scaling. This operation may be costly so do not call it frequently.

Properties
TransparentSKControl?	SKControl `[get]`

override GRContext	GRContext `[get]`
	Context for hardware-accelerated graphics (or null if not available)

Properties inherited from ScottPlot.WinForms.FormsPlotBase
GRContext	GRContext `[get]`
	Context for hardware-accelerated graphics (or null if not available)

Plot	Plot `[get, set]`
	The primary Plot displayed by this interactive control.

IMultiplot	Multiplot `[get, set]`
	The multiplot managed by this interactive control.

IPlotMenu?	Menu `[get, set]`
	Platform-specific logic for managing the context menu.

UserInputProcessor	UserInputProcessor `[get]`
	This object takes in UI events and contains logic for how to respond to them. This is a newer alternative to the older Interaction system.

float	DisplayScale `[get, set]`
	The value of the present display scaling. Mouse positions are multiplied by this value for pixel/coordinate conversions.

bool	IsDesignerAlternative `[get]`
	A design time alternative view is displayed for instances where the plot control is loaded inside Visual Studio and the SkiaSharp DLL cannot be properly loaded.

override System.Drawing.Color	BackColor `[get, set]`

Properties inherited from ScottPlot.IPlotControl

Constructor & Destructor Documentation

◆ FormsPlot()

ScottPlot.WinForms.FormsPlot.FormsPlot ( )

inline

override void ScottPlot.WinForms.FormsPlot.Refresh ( )

inline

Render the plot and update the image.

override GRContext ScottPlot.WinForms.FormsPlot.GRContext

get

Context for hardware-accelerated graphics (or null if not available)

TransparentSKControl? ScottPlot.WinForms.FormsPlot.SKControl

get

The documentation for this class was generated from the following file:

ScottPlot/src/ScottPlot5/ScottPlot5 Controls/ScottPlot.WinForms/FormsPlot.cs
